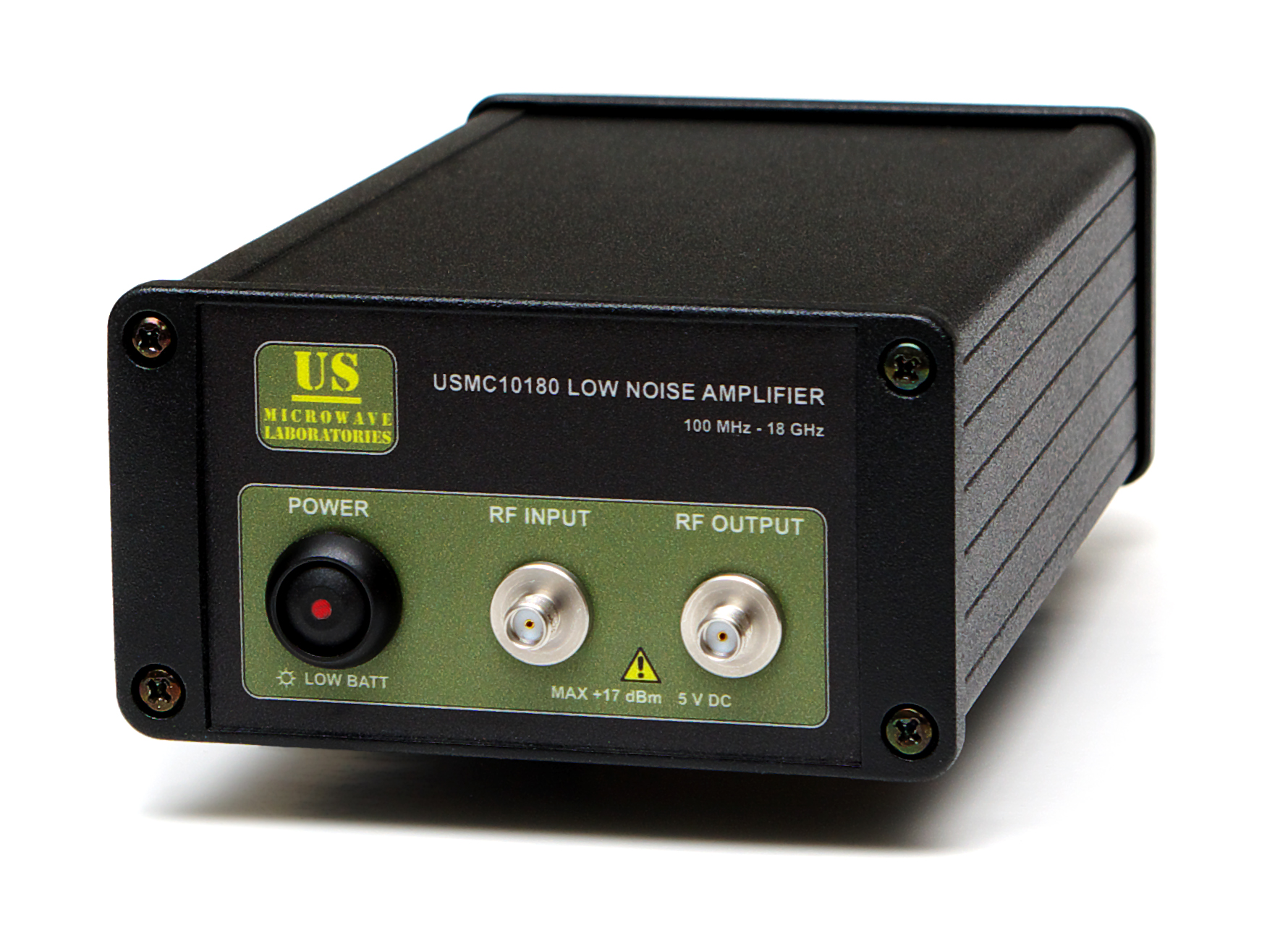

USMC10180 Desktop Low Noise Preamplifier - 100 MHz to 18 GHz
The USMC10180 low noise broadband amplifiers by US Microwave Laboratories offer exceptional performance at a very competitive price. Covering the bandwidth between 100 MHz and 18 GHz, they provide 24 or 48 dB of flat gain, very low noise figure, and an optional built-in battery and smart charger.
These amplifiers are ideal for Electromagnetic Compatibility (EMC) testing and certification. The low noise figure and high gain of the USMC10180 permit the visualization of signals that would otherwise appear below the noise floor in a radiated emissions test.
Designed and manufactured in the U.S.A., the USMC10180 conforms to the European RoHS requirements and is ECCN EAR99.
FEATURES
MULTIPLE APPLICATIONS
Electromagnetic Compatibility (EMC) testing
Instrumentation
Antenna field measurements
Communication systems
BROADBAND PERFORMANCE
24 or 48 dB of flat gain from 100 MHz to 18 GHz
OPTIONAL BUILT-IN BATTERY
Internal battery for field operation and zero electrical noise or power cables
READY FOR THE TOUGHEST ENVIRONMENT
Wide operating temperature range. IP65 / IP60 compliant
All our products are designed and manufactured in the U.S.A.
Specifications subject to change without notice
USMC10180 Low Noise Preamplifier Brochure

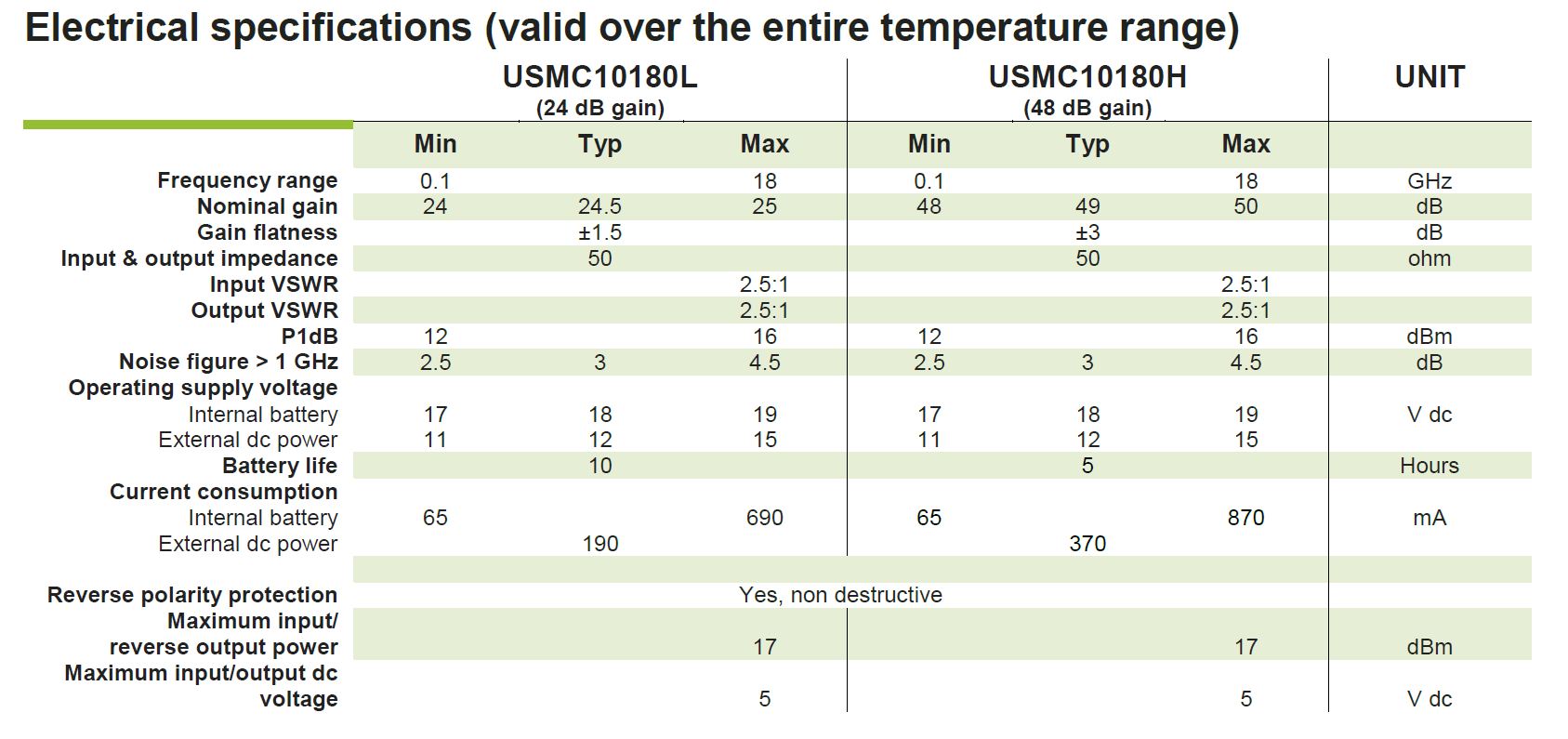

Typical measured performance
