The USLN low noise broadband amplifier series by US Microwave Laboratories provide exceptional performance at a very competitive price. Covering bandwidths of more than 11 octaves, they provide outstanding flatness, sub-dB noise figure, non-destructive reverse polarity and comprehensive ESD and transient protection.
All models meet all specifications from -40ºC through 85ºC, and the outdoor option is IP65 compliant.
Designed and manufactured in the U.S.A., they conform to the European RoHS requirements, and are ECCN EAR99.

FEATURES

BROADBAND PERFORMANCE

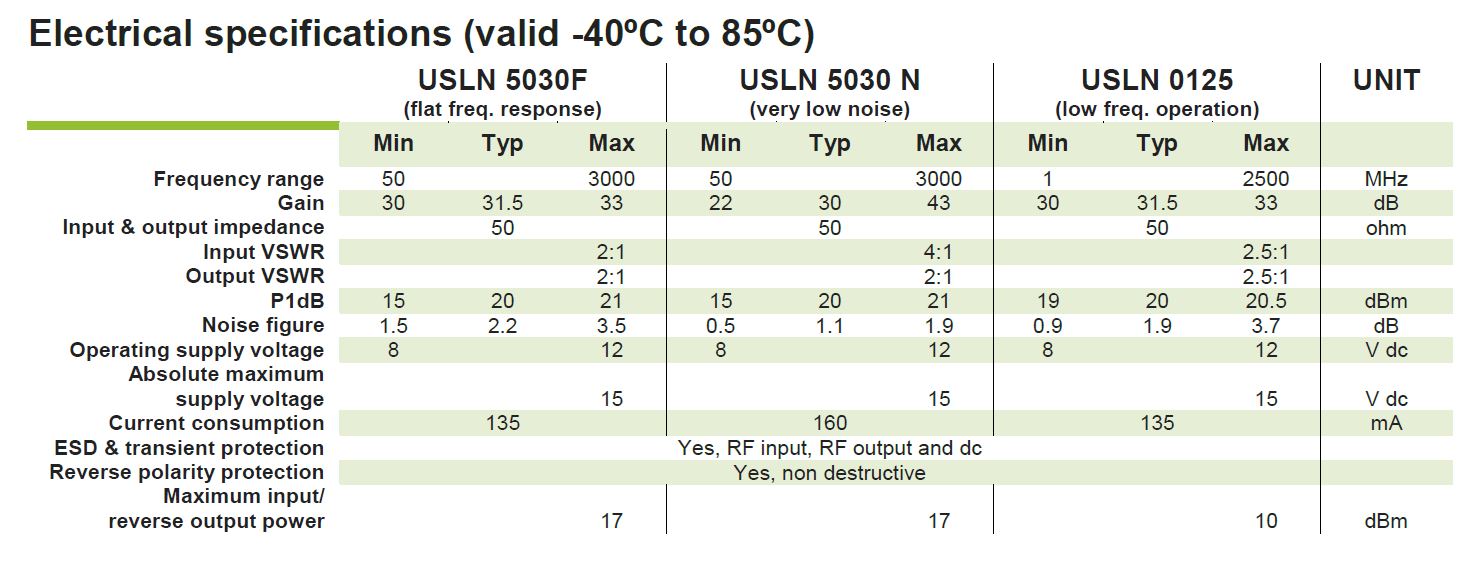

1 MHz to 2.5 GHz or 50 MHz to 3 GHz

VERY LOW NOISE
0.5 to 3.7 dB, depending on model and frequency

WELL PROTECTED
Reverse polarity, non-destructive protection. RF input, RF output and supply voltage ESD protection

READY FOR THE TOUGHEST ENVIRONMENT

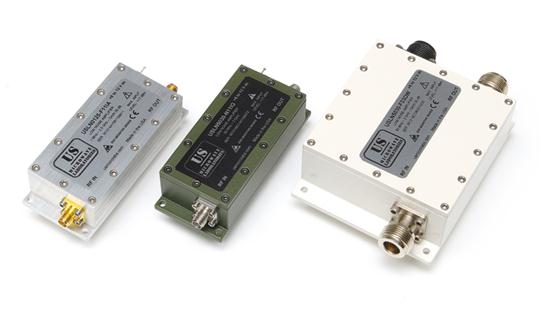

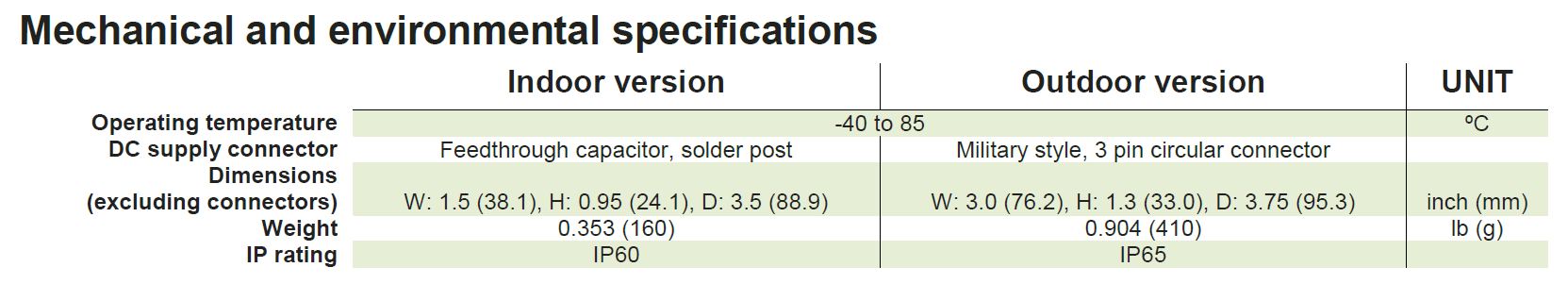

All models meet all specifications from -40 to 85 °C. Outdoor housing option is IP65 compliant

RF & microwave components and equipment

Copyright US Microwave Laboratories
USLN Series Low Noise Broadband Amplifiers - 1 MHz to 3 GHz
Specifications subject to change without notice
USLN Series Low Noise Broadband Amplifiers Brochure
Typical measured performance - USLN0125
All our products are designed and manufactured in the U.S.A.
Typical measured performance - USLN5030-N
Typical measured performance - USLN5030-F
