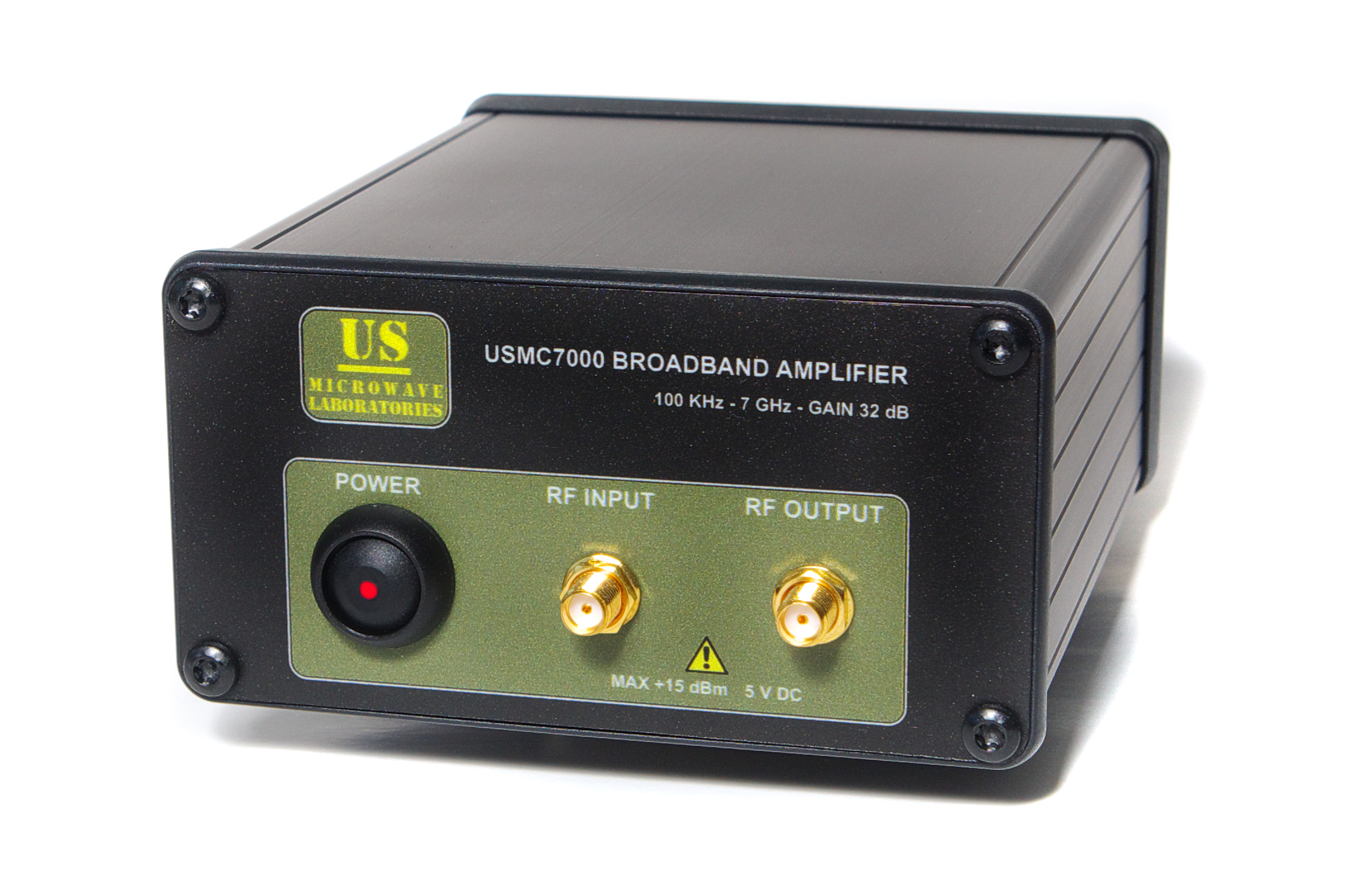

USMC7000 Broadband Preamplifier - 100 KHz to 7 GHz
The USMC7000 broadband amplifiers by US Microwave Laboratories offer exceptional performance at a very competitive price. Covering the bandwidth between 100 KHz and 7 GHz, they provide 32 dB of flat gain and low noise figure in a small and convenient package.
These amplifiers are ideal for Electromagnetic Compatibility (EMC) testing and certification and can be used as probe amplifiers. The unit is supplied with a wall-mount AC adapter with interchangeable plugs that can be used in most countries in the world.
Designed and manufactured in the U.S.A., the USMC7000 conforms to the European RoHS requirements and is ECCN EAR99.
Electromagnetic Compatibility (EMC) testing
Antenna field measurements

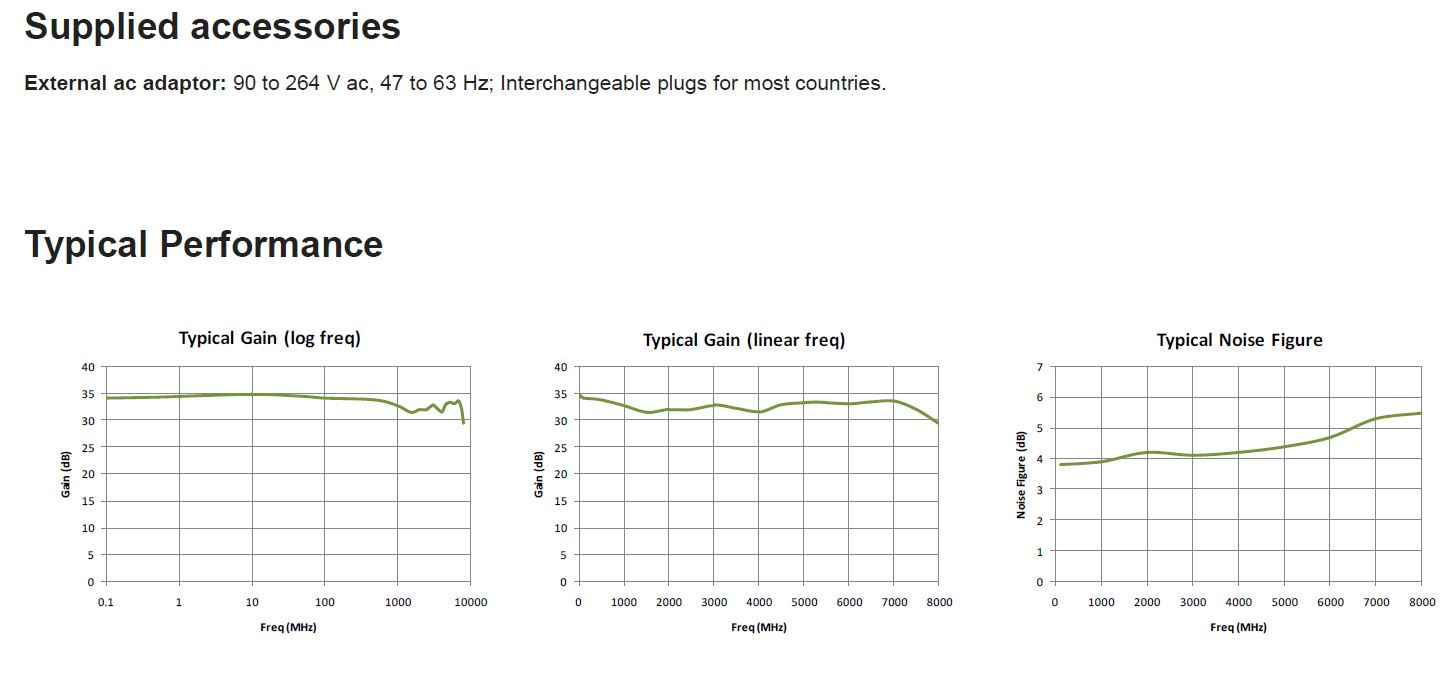

32 dB of flat gain from 100 KHz to 7 GHz
Wide bandwidth allows for one preamplifier to be used with most near-field probes.
Power supply with interchangeable plugs suitable for most countries in the world.
READY FOR THE TOUGHEST ENVIRONMENT
Wide operating temperature range.
RF and dc input protected against ESD.
Non-destructive reverse polarity protection.
All our products are designed and manufactured in the U.S.A.
